Sport/London

Chelsea Football Club

Engineered installation for one of world football's most recognisable clubs.

Stadium Roofline LEDStamford Bridge / Chelsea FC

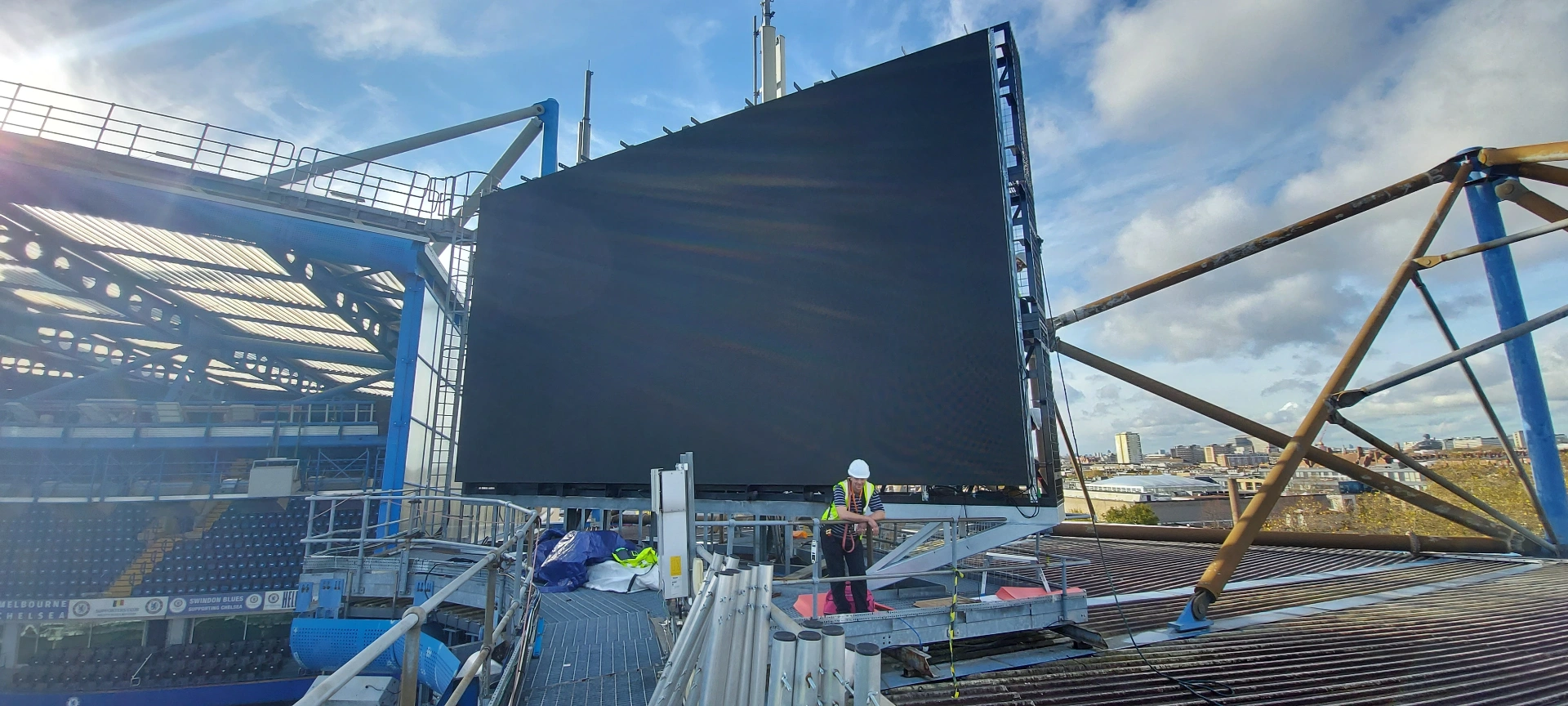

Chelsea FC — large-format LED screen mounted to roofline support frame at Stamford Bridge with engineer commissioning at high level — REF · CFC-001 — Roofline LED, commissioning at height

Overview

A precision installation delivered for Chelsea Football Club — built and finished to brand-grade standard, coordinated around an active venue programme.

Challenge // 01WL · 01

Challenge

Delivering a brand-grade engineered installation inside an active sporting venue, without compromising visual standard or schedule.

Solution // 02WL · 02

Solution

Components fabricated and finished in-house to club specification, sequenced around venue access windows.

Project Gallery

Stamford Bridge — In Stadium

London · Chelsea FC / Stamford Bridge

Roof-Truss Rigging · Roofline LED

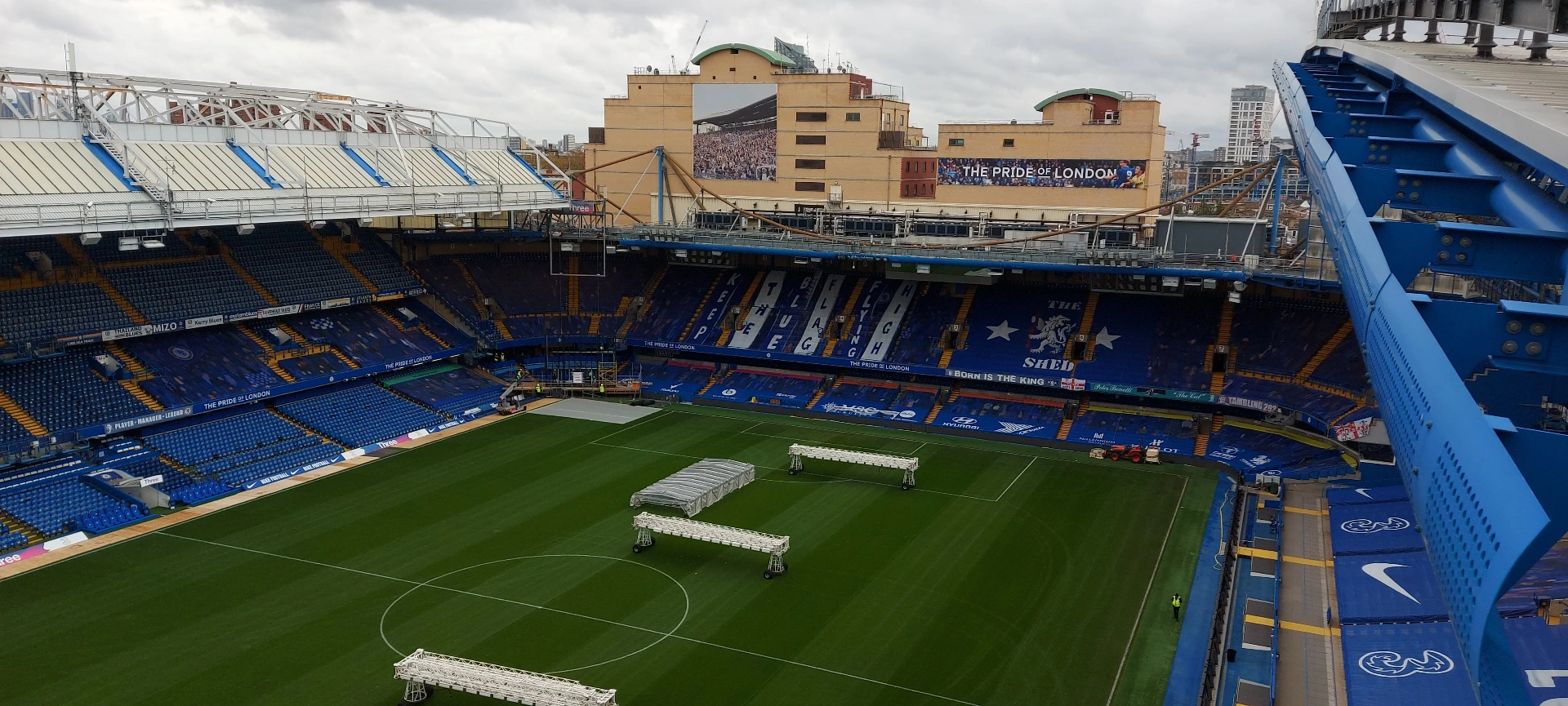

Chelsea FC — wide elevated view across Stamford Bridge stadium bowl with pitchside truss equipment in place ahead of fixture turnaround — REF · CFC-002 — Stadium bowl, install access window

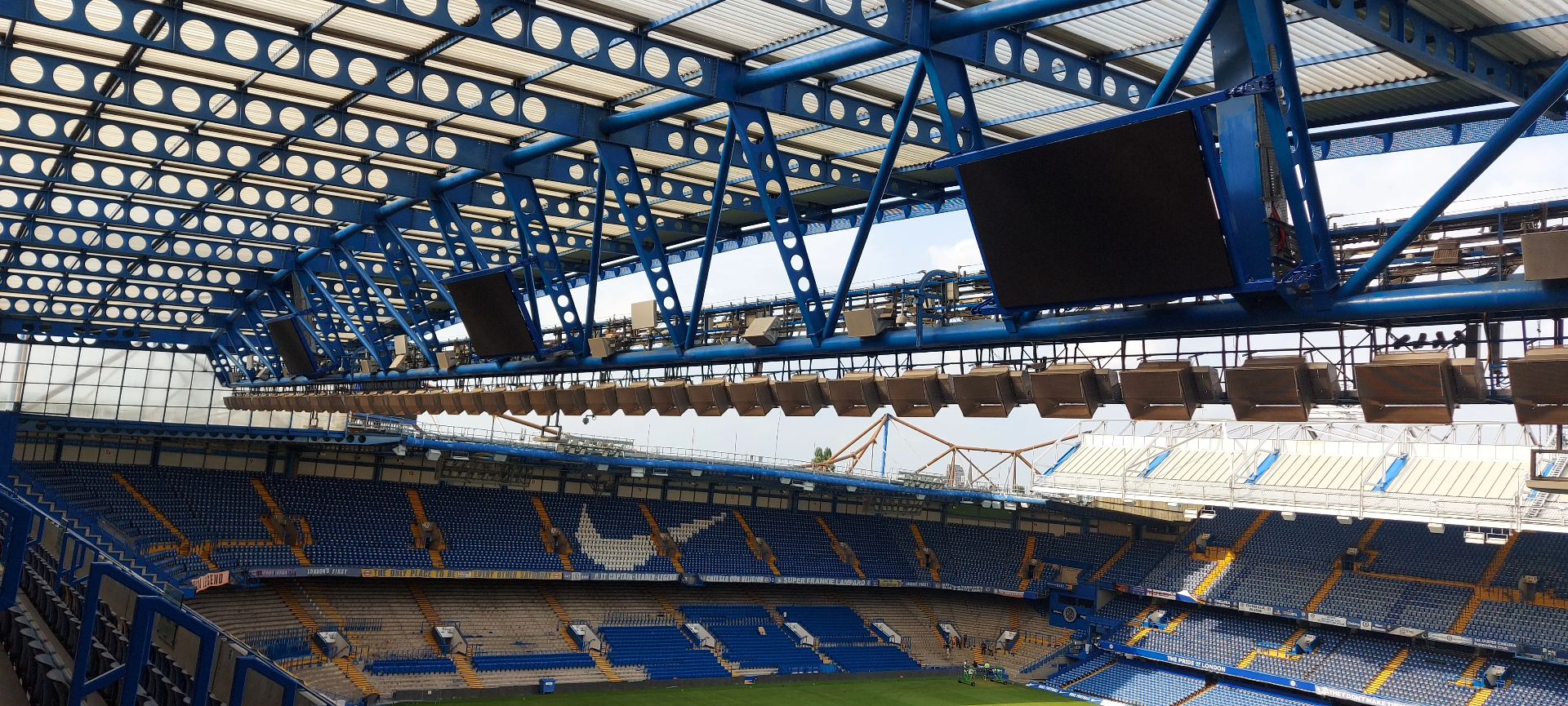

Chelsea FC — under-roof view of Stamford Bridge primary truss with rigged scoreboard screen and PA / lighting array suspended at high level — REF · CFC-003 — Under-truss rig, scoreboard & array integration

Chelsea FC — exterior roofline view of large-format LED screen on engineered support frame, with technician mid-commissioning — REF · CFC-004 — Engineered support frame, commissioning

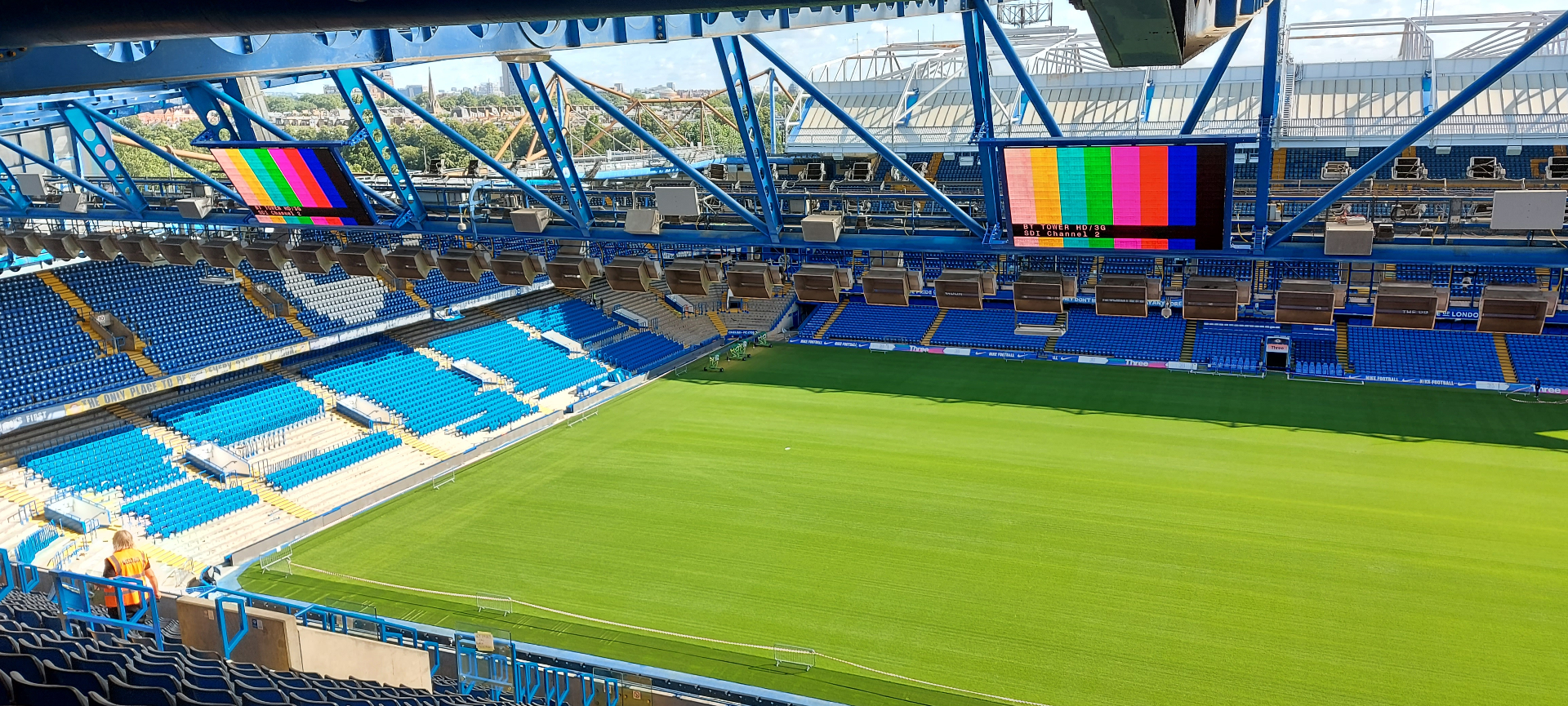

Chelsea FC — twin large-format LED screens displaying SMPTE colour bar test pattern during commissioning, viewed across empty Stamford Bridge bowl — REF · CFC-005 — Twin LED screens, SMPTE bar commissioning

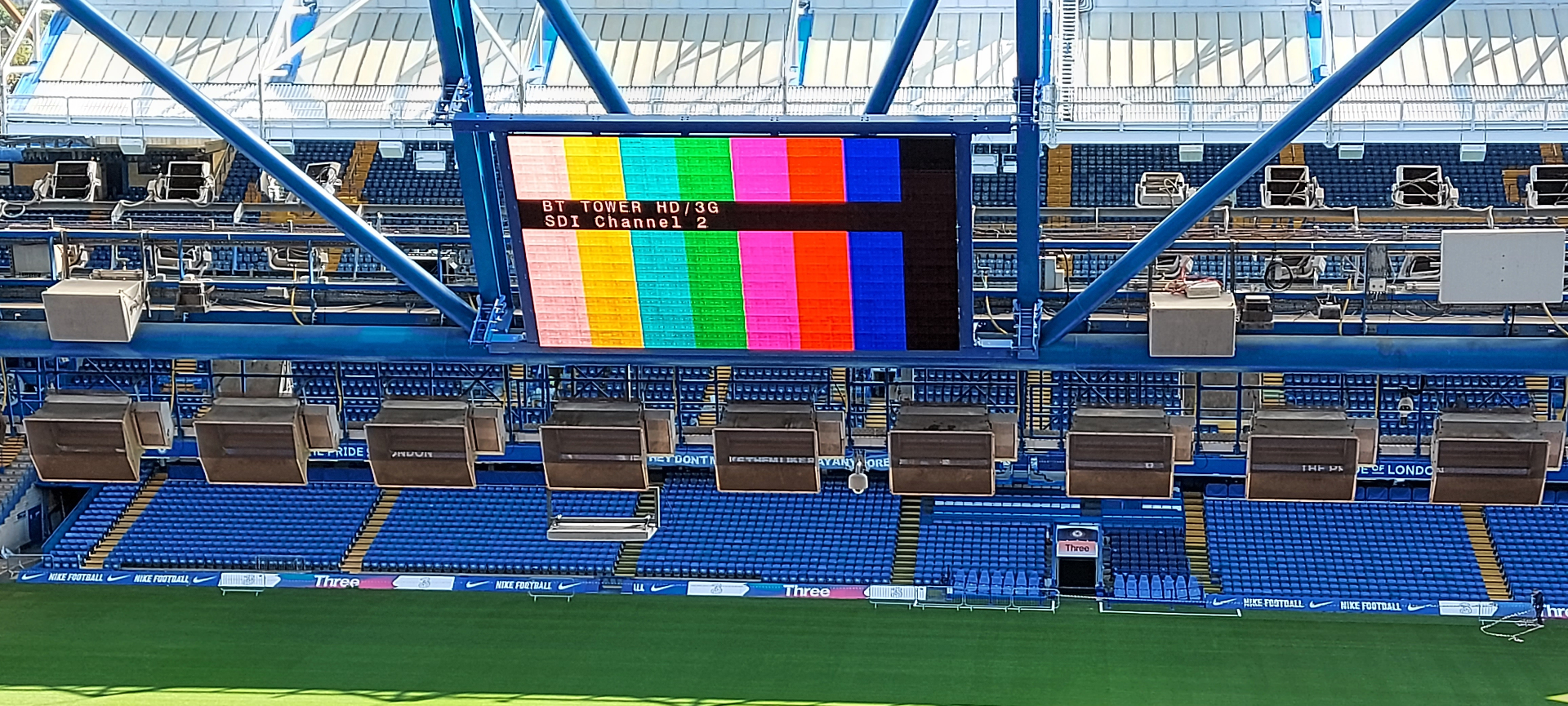

Chelsea FC — close-up of suspended LED scoreboard showing SMPTE colour bars and BT Tower HD/3G SDI Channel 2 feed identifier during signal test — REF · CFC-006 — Scoreboard close-up, BT Tower SDI feed test

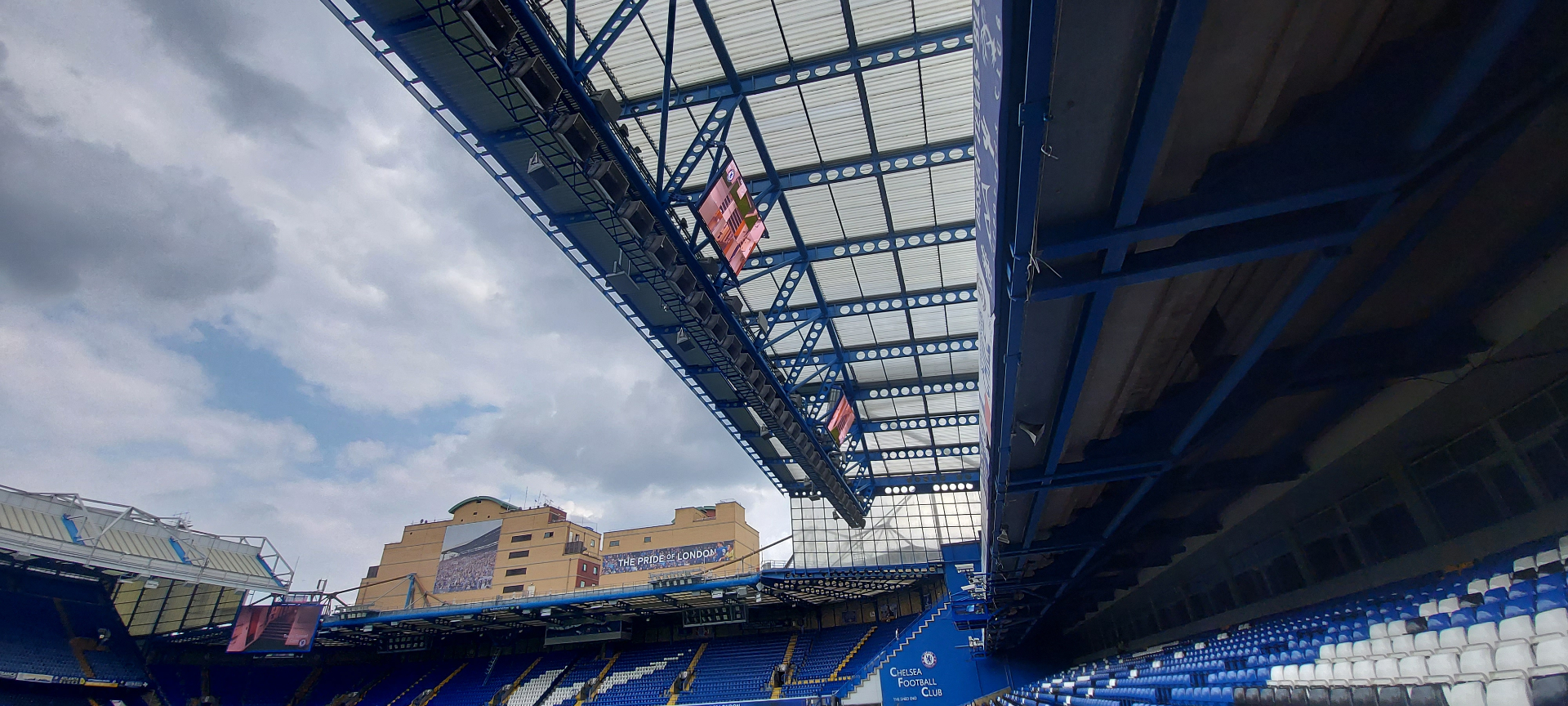

Chelsea FC — upward view from pitchside at the Shed End showing roof truss structure with suspended LED screen rigged at high level — REF · CFC-007 — Shed End, high-level rigged screen

Result // 03WL · 03

Result

A clean, brand-grade installation delivered on programme inside a live venue environment.
