Forming Tools

Custom forming tools built for production consistency.

Bespoke Tooling

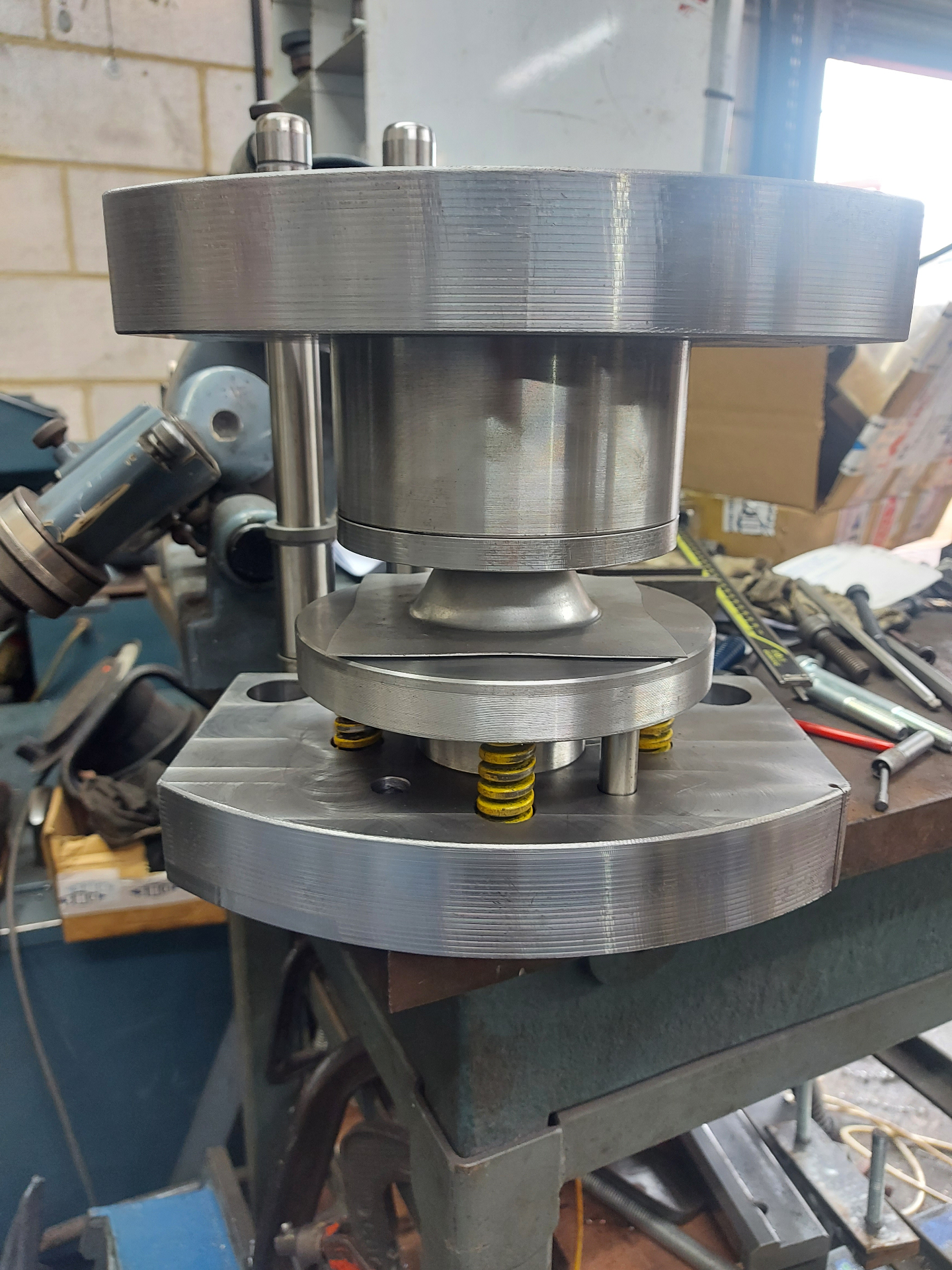

Forming Tools — bespoke press tool stack on bench, sprung lower die with upper punch loaded
REF · FT-001 — Press tool stack, sprung lower die assembly
Overview

Custom-engineered forming tools designed and produced in-house, built around the specific geometry and run rate of the target component.

Challenge // 01WL · 01

Challenge

Producing forming tools that maintain dimensional consistency under repeat-cycle loading.

Solution // 02WL · 02

Solution

Tool design optimised for material flow and wear resistance, then machined and trialled in-house.

Project Gallery

Tooling — Build & Output

In-house · Bespoke Tool Set
Press · Dies · Machined Components
Forming Tools — assembled press tool with sprung lower die ready for trial cycle
REF · FT-002 — Assembled press tool, sprung lower die, trial-ready

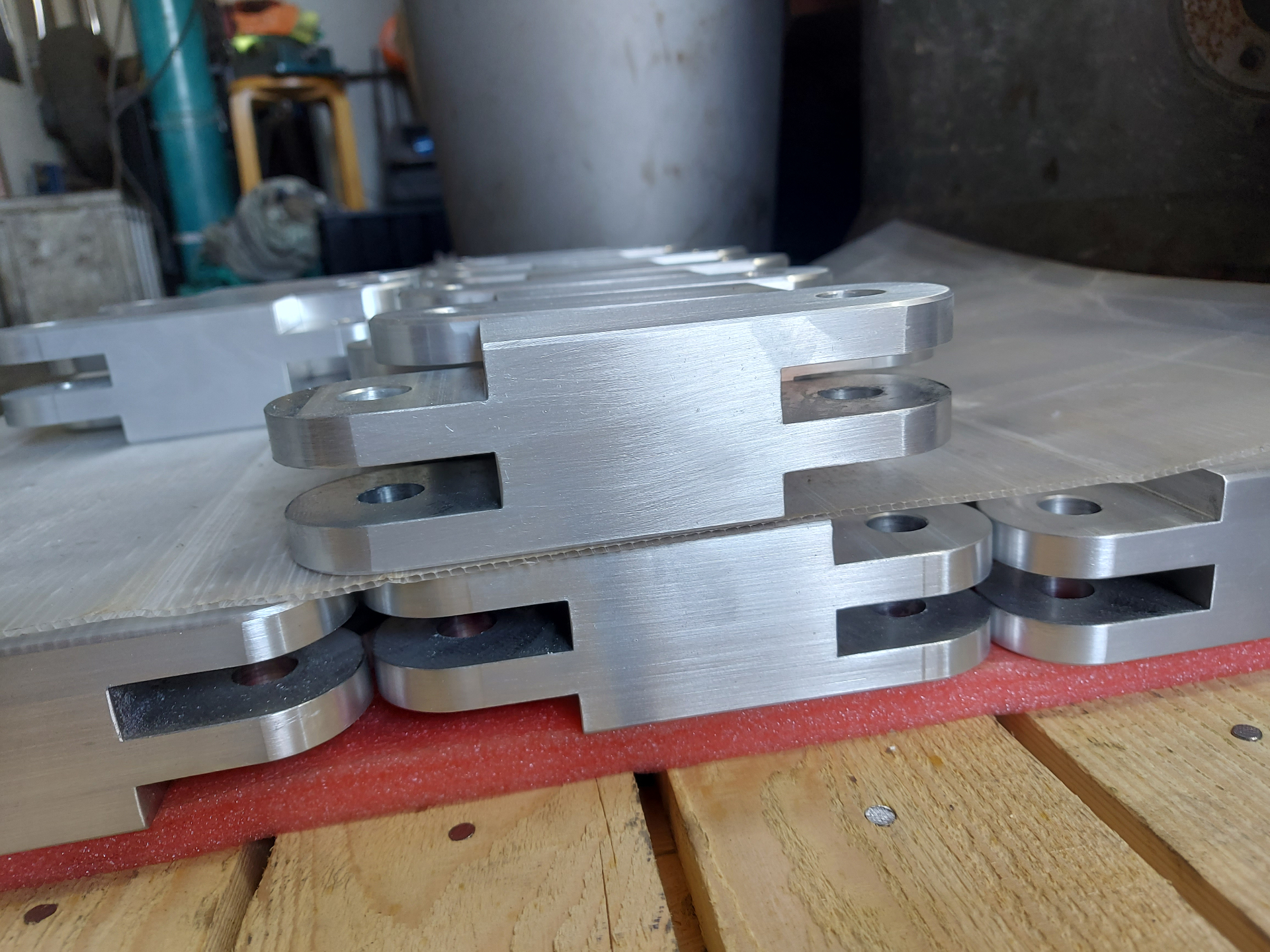

Forming Tools — finished machined link plates produced from the bespoke tooling, batched and protected
REF · FT-003 — Production output, machined link plates, batched
Result // 03WL · 03

Result

Tooling that delivers dimensionally consistent parts at production speed.
